| Specification | Detail |
| Weight | 114 kg (253 lbs) |
| Full Throttle RPM Range | 5300 ~ 6300 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | i4 |
| Displacement | 1.0L |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 70hp at 5800 rpm |
| Alternator Output at W.O.T. | 15 Amp |
| Compression Ratio | 9.4:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LKR7E |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 2.1/1.9 |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.33:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ |
| Degree of Tilt | 65° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |

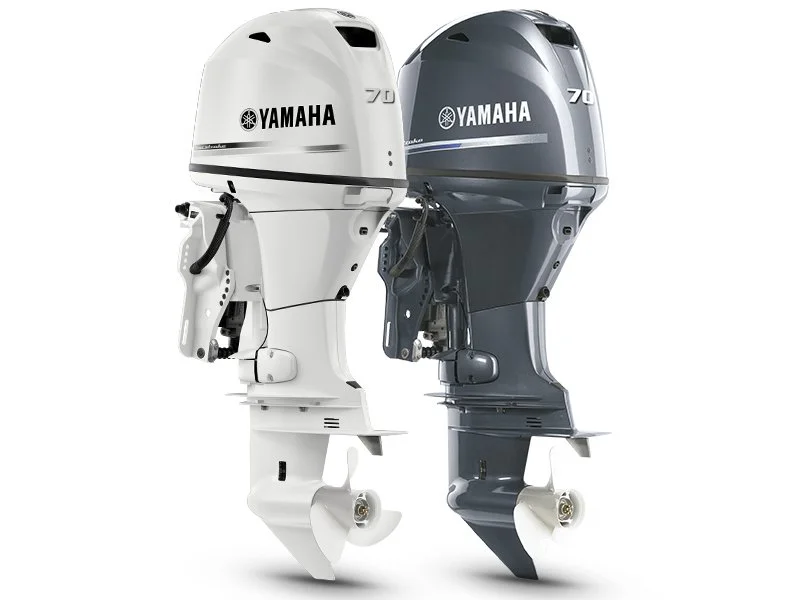

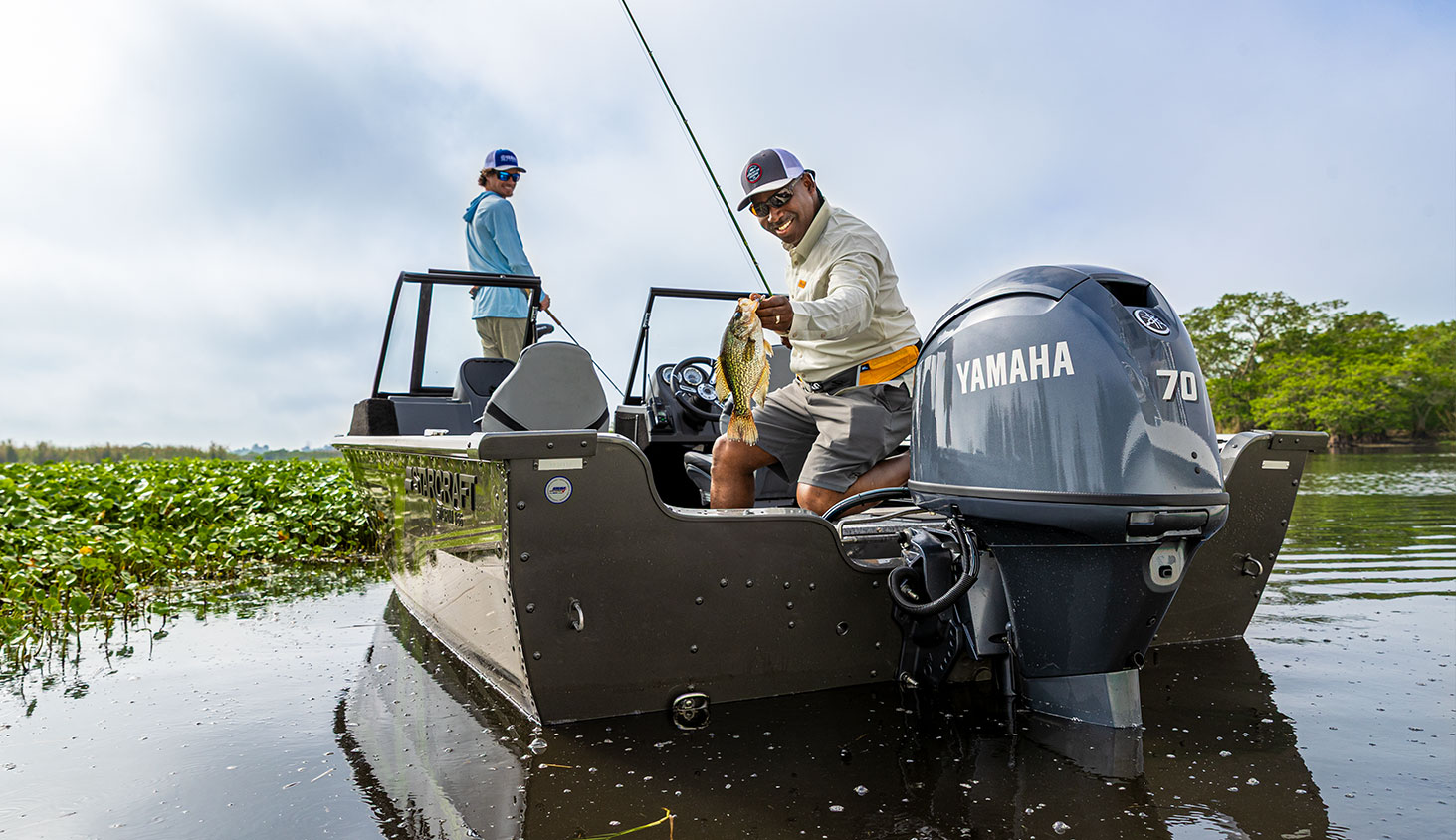

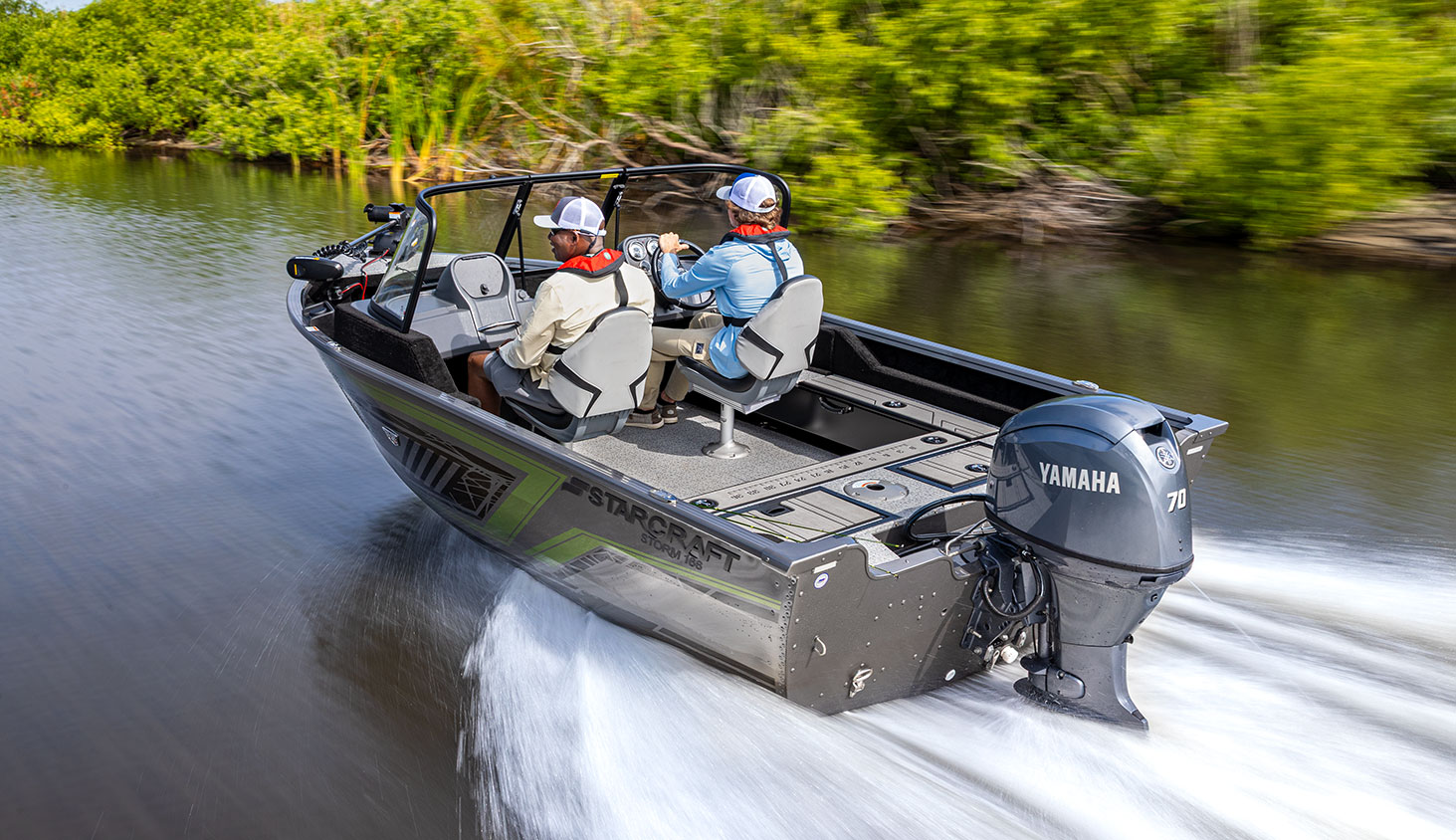

Yamaha 1-Liter Midrange F70 Outboard Motor
$7,480.00
Featuring a two-piece upper case and 10 percent lighter pistons, the 1-liter 70-hp midrange combines its 16-valve SOHC design and 17 percent larger intakes to deliver some of the most responsive performance on the water. Now available in a stealthy matte brown in addition to signature Yamaha gray and pearlescent white, it weighs only 253 pounds, features a 20-inch shaft, and is equipped with a powerful 15-amp alternator alongside an optional Variable Trolling RPM Switch (VTS).
Key Features
-
Advanced Design: Built with a two-piece upper case, 10 percent lighter pistons, 16-valve SOHC layout, and 17 percent larger intakes for superior responsiveness.
-
Lightweight Build: Weighs only 253 pounds with a 20-inch shaft length.
-
Electrical Power: Includes a powerful 15-amp alternator.
-

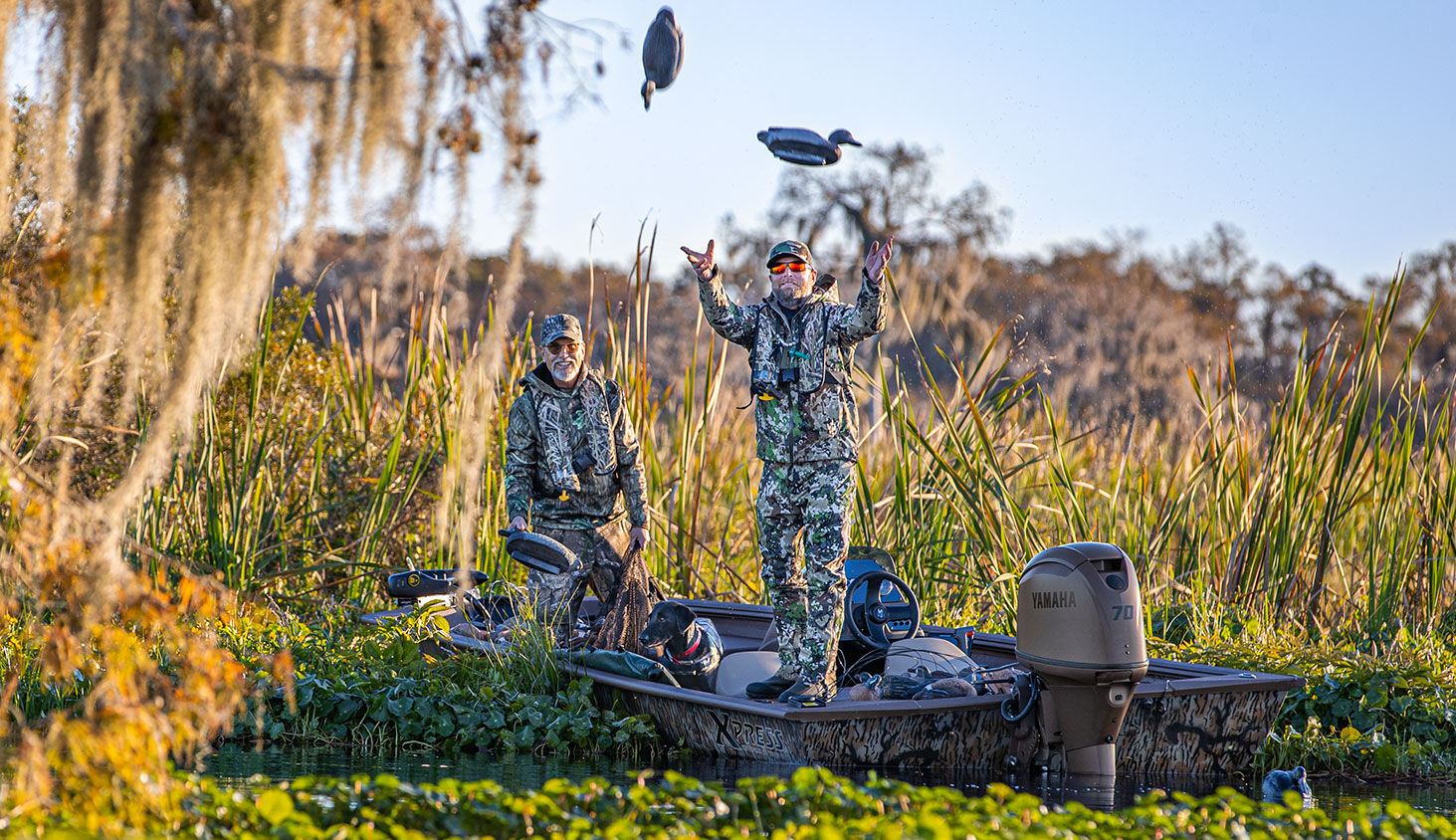

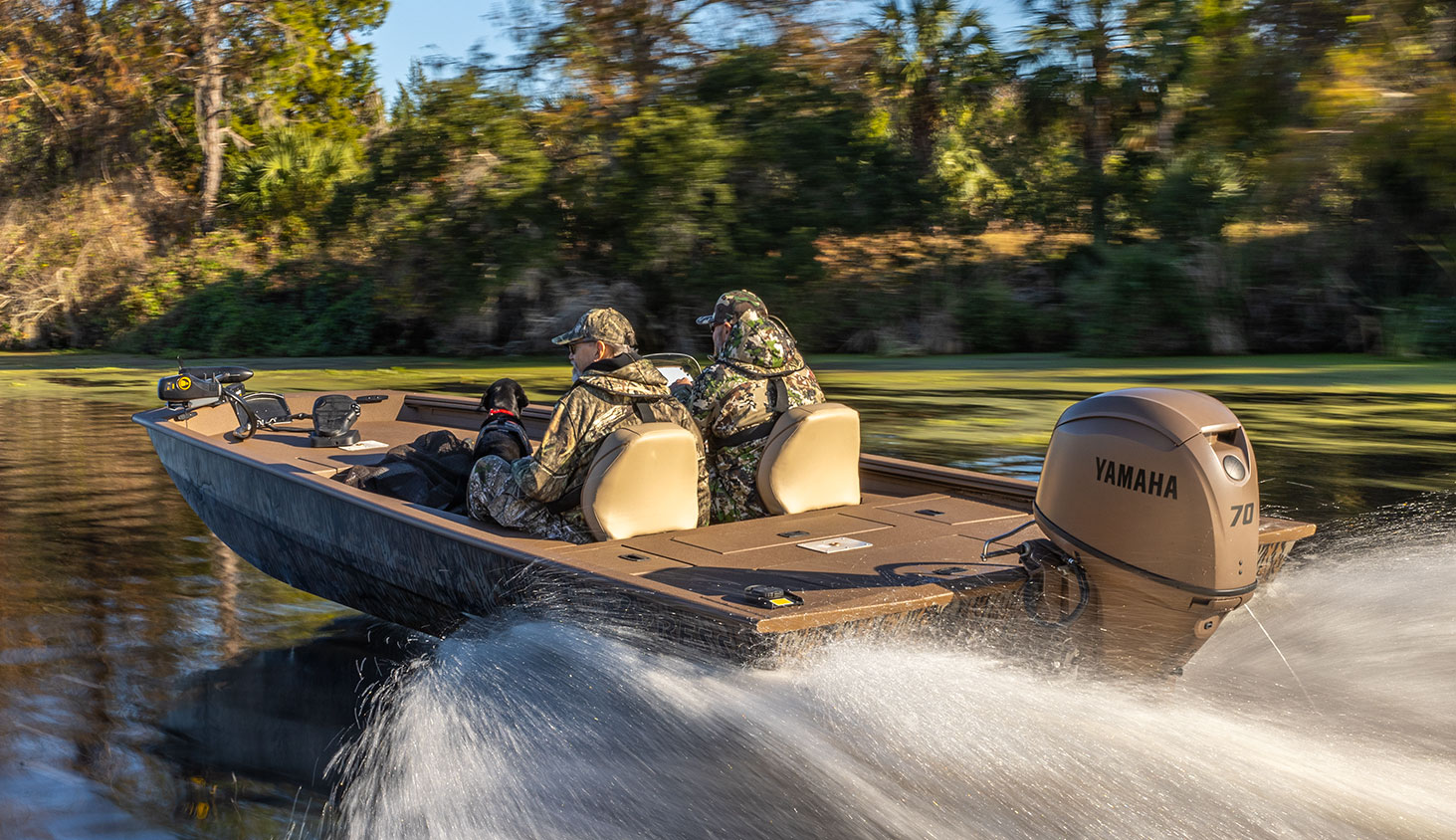

Color & Control Options: Available in signature Yamaha gray, pearlescent white, and matte brown, with an optional Variable Trolling RPM Switch (VTS).
