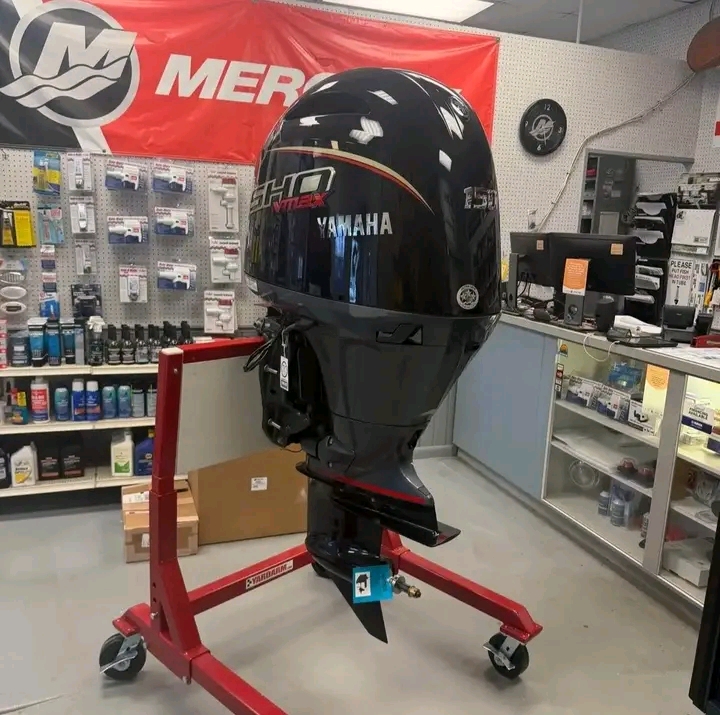

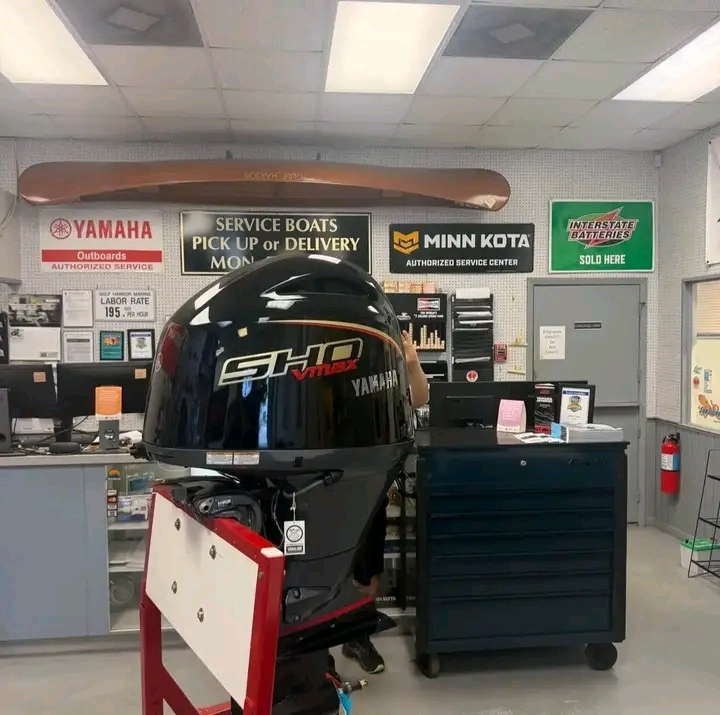

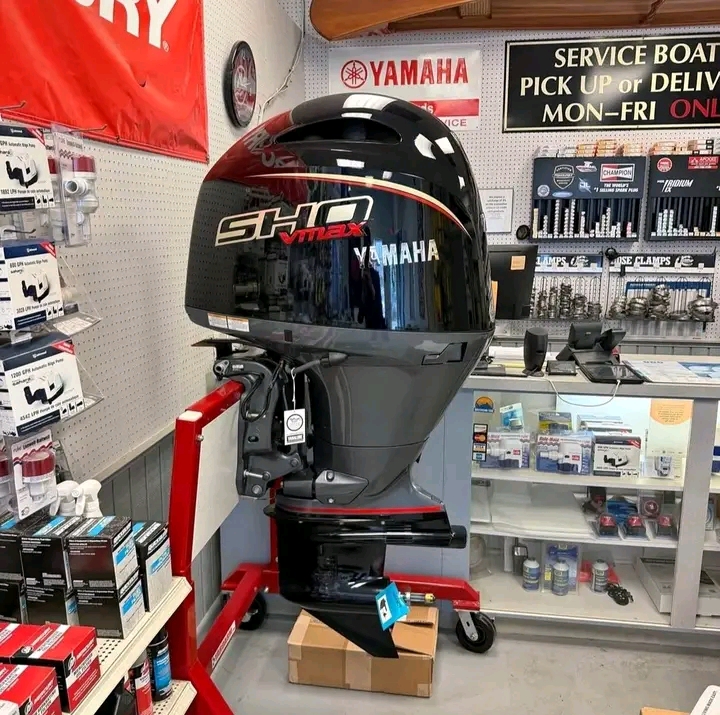

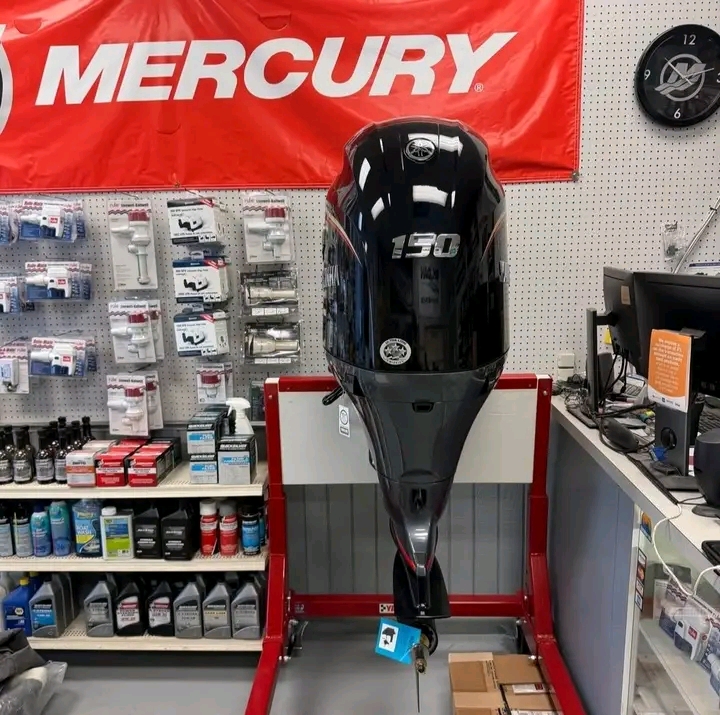

Brand New Yamaha 150HP SHO 25”
Brand new Yamaha V MAX SHO 150HP outboard with 25-inch shaft and 5-year warranty from date of purchase. Includes all accessories and rigging available.
Details:
• Brand new Yamaha 150HP SHO
• 25-inch shaft (XL leg)
• 5-year warranty from purchase date
• All accessories included
• Rigging available
• V MAX SHO In-Line 4 series
• 2.8L high-output four-cylinder
• 50 amps charging power
• Remote mechanical controls
Price with 5-year warranty included: $8999
New Yamaha 150HP SHO ready for immediate installation with extended warranty protection. Perfect for bass, bay, and multi-species boats needing reliable high-output power.
| Item | Description / specification |
|---|---|
| Manufacturer | Yamaha Motor |
| Product family | V MAX SHO In-Line Four |
| Rated output | 150 HP at the propeller shaft |

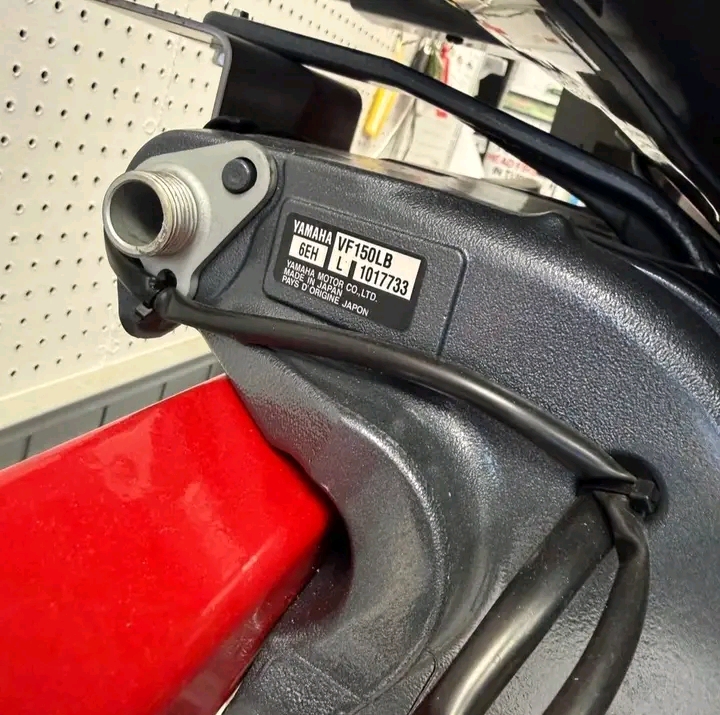

| Model family | VF150X series |
| Engine type | Four-stroke, naturally aspirated, water-cooled |
| Cylinder configuration | Inline four-cylinder |
| Displacement | 2,785 cc / 2.8 L / 170 cubic inches |
| Valve train | DOHC, four valves per cylinder |
| Fuel system | Electronic Fuel Injection (EFI) |
| Variable valve timing | Yamaha Variable Camshaft Timing (VCT) |
| Starting system | Electric start |
| Ignition | TCI microcomputer-controlled ignition |
| Full-throttle operating range | 5,000–6,000 RPM |
| Rated horsepower speed | 150 HP at 5,500 RPM |
| Compression ratio | 10.3:1 |
| Bore × stroke | 96 × 96.2 mm |
| Fuel requirement | Regular unleaded gasoline, minimum 89 pump octane |
| Gear ratio | 2.00:1 |
| Alternator output | 50 amps |
| Charging capability | Suitable for maintaining engine start battery and supporting modern marine electronics, pumps, livewells, lighting, and fishing equipment within the boat’s properly designed electrical system |
| Dry weight | Approx. 489 lb / 222 kg for the 25-inch configuration |
| Shaft length | 25-inch X-Long / XL shaft |
| Controls | Remote mechanical throttle and shift |
| Trim range | -4° through +16° |
| Tilt range | 70° |
| Mounting-center dimension | 26 inches |
| Steering | Remote cable/mechanical steering arrangement; exact steering components depend on final rigging package |
| Lubrication | Four-stroke crankcase lubrication; Yamaha Yamalube 4M or oil meeting Yamaha manual requirements |
| Engine-oil capacity | Approx. 4.5 L with filter / 4.3 L without filter |
| Warranty represented | Five-year warranty from retail purchase date, subject to confirmation of Yamaha warranty registration, selling dealer status, territory, usage classification, and warranty terms. |
