| Specification | Detail |
| Weight | 432 kg (952 lbs) / 443 kg (977 lbs) / 453 kg (999 lbs) |
| Full Throttle RPM Range | 5000 – 6000 RPM |
| Fuel Induction System | Direct Injection / Up to 2900 PSI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | V8 / DOHC / 32 valves / 4 Valves per Cylinder |
| Displacement | 5.6L |
| Bore x Stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 425hp at 5500 RPM |
| Alternator Output at W.O.T. | 100 Amp Gross, Max |
| Compression Ratio | 12.2:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller (Except in Reverse Under 2500 RPM) |
| Intake | 32 |
| Ignition | TCI Microcomputer |
| Spark Plug | ILMAR7E-9 / Iridium |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (25/14) 1.79 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 25″ – 30″ – 35″ |
| Degree of Tilt | -4° through +73° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 28.5″ |
| Steering | Integrated, Electric Actuation |
| Steering Angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
Yamaha 5.6L V8 XTO 450 Offshore
$48,400.00
Yamaha V6 Offshore F350 HP Outboard Motor
$28,160.00
Yamaha XTO Offshore 425 HP Outboard Motor
$40,480.00

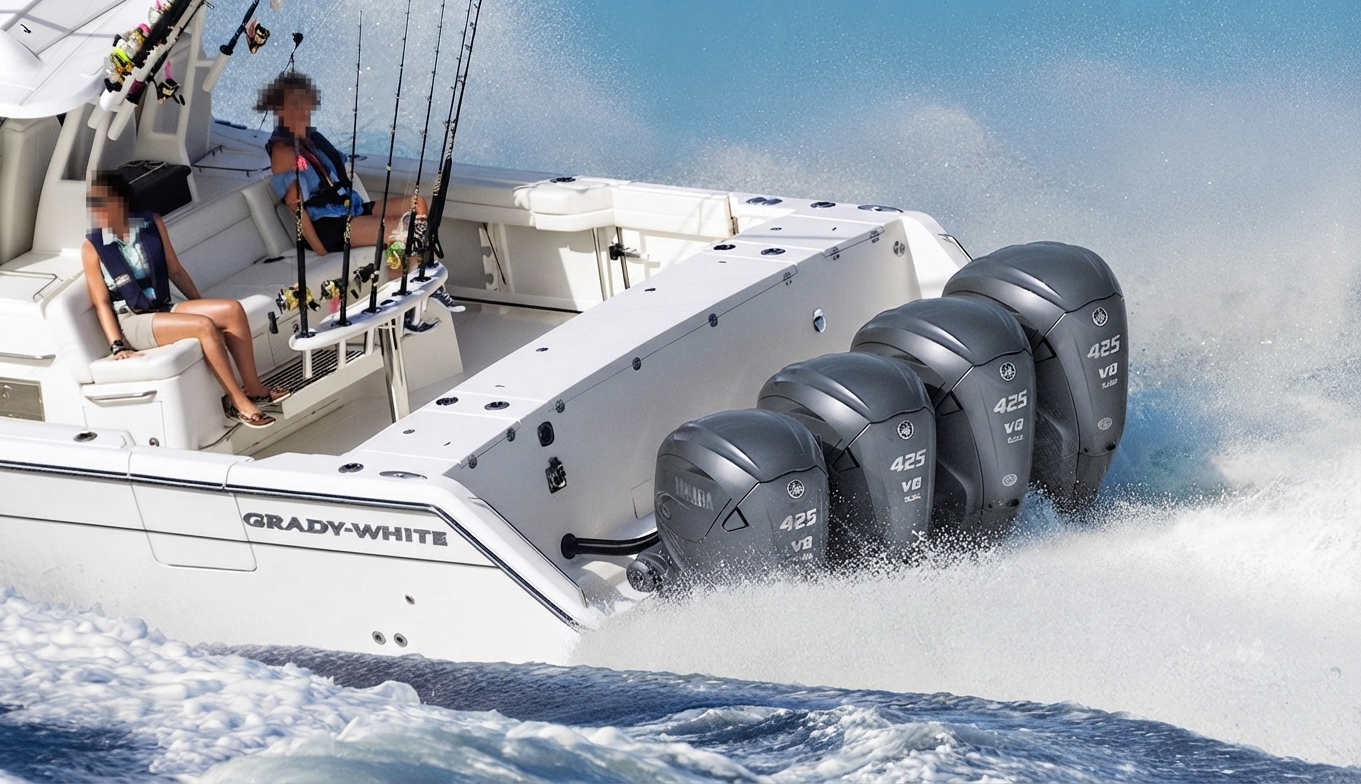

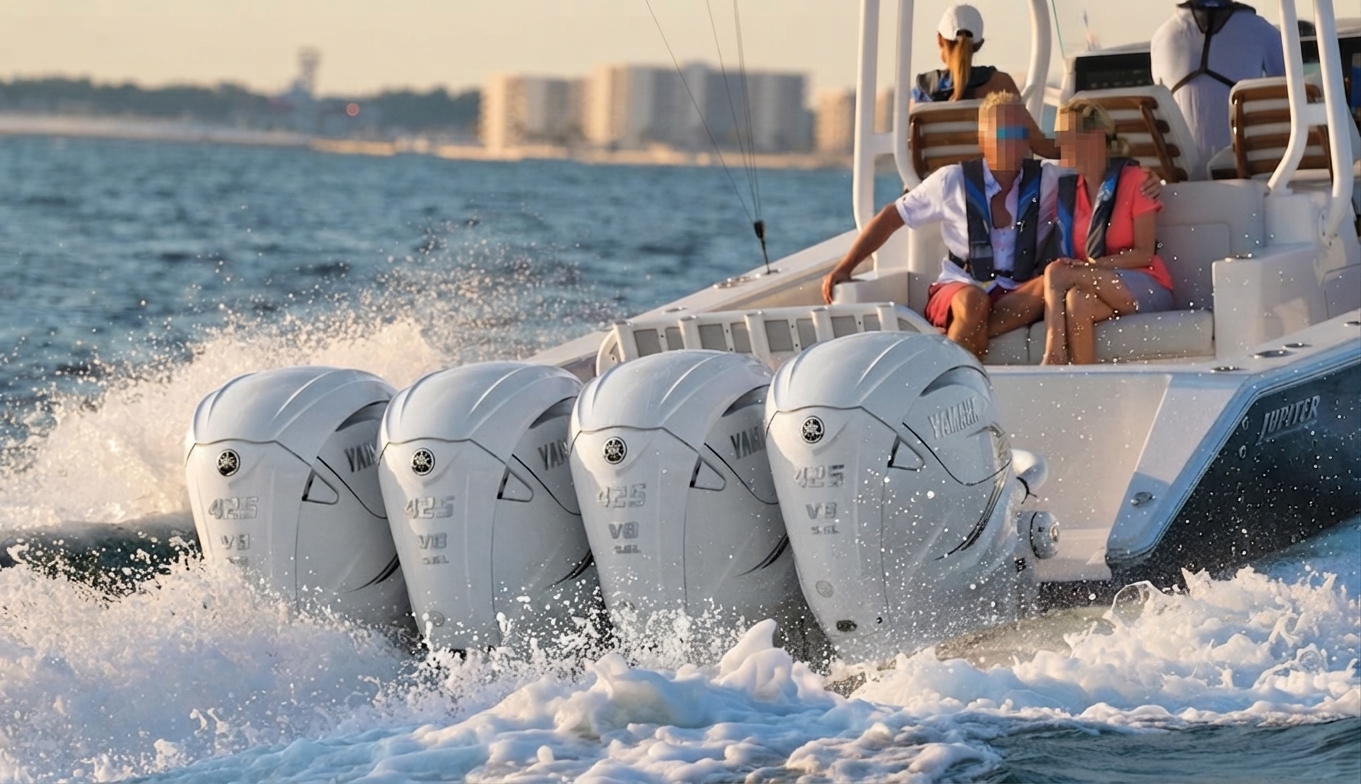

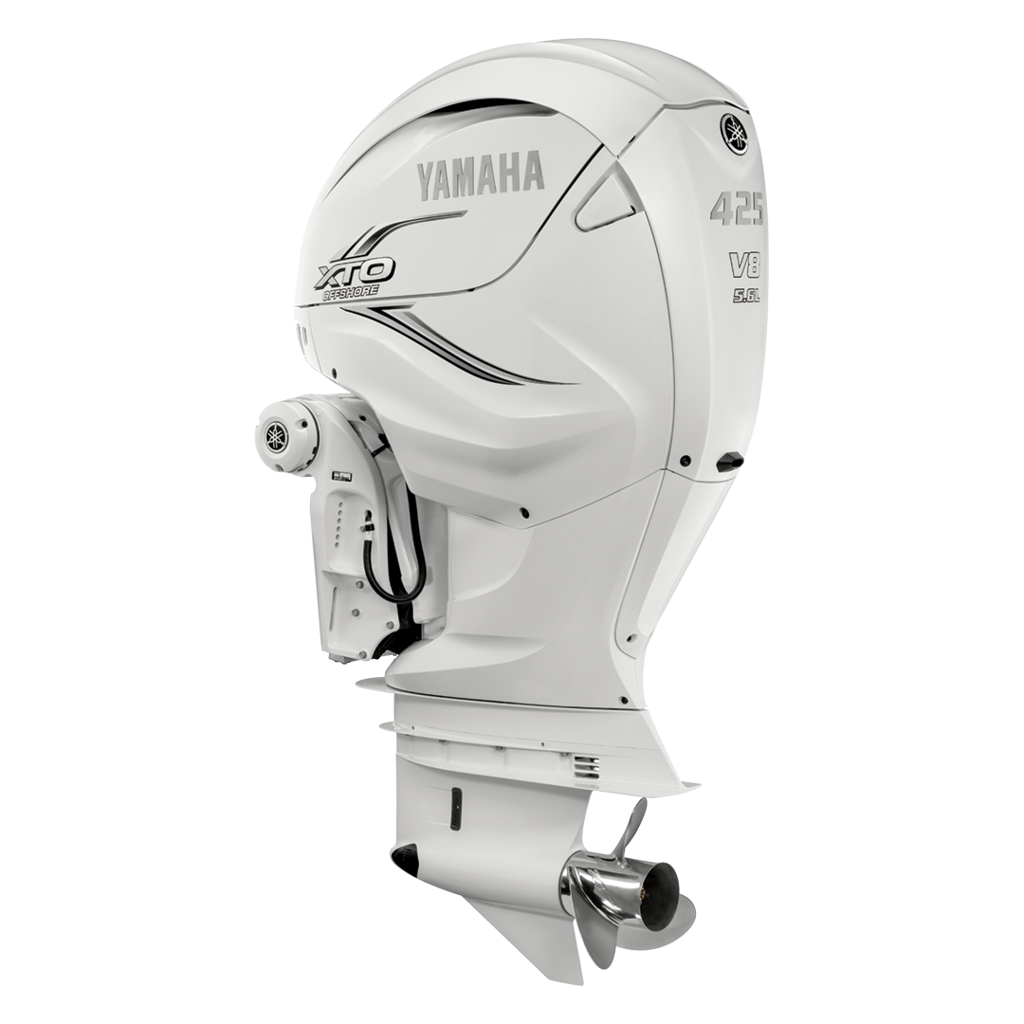

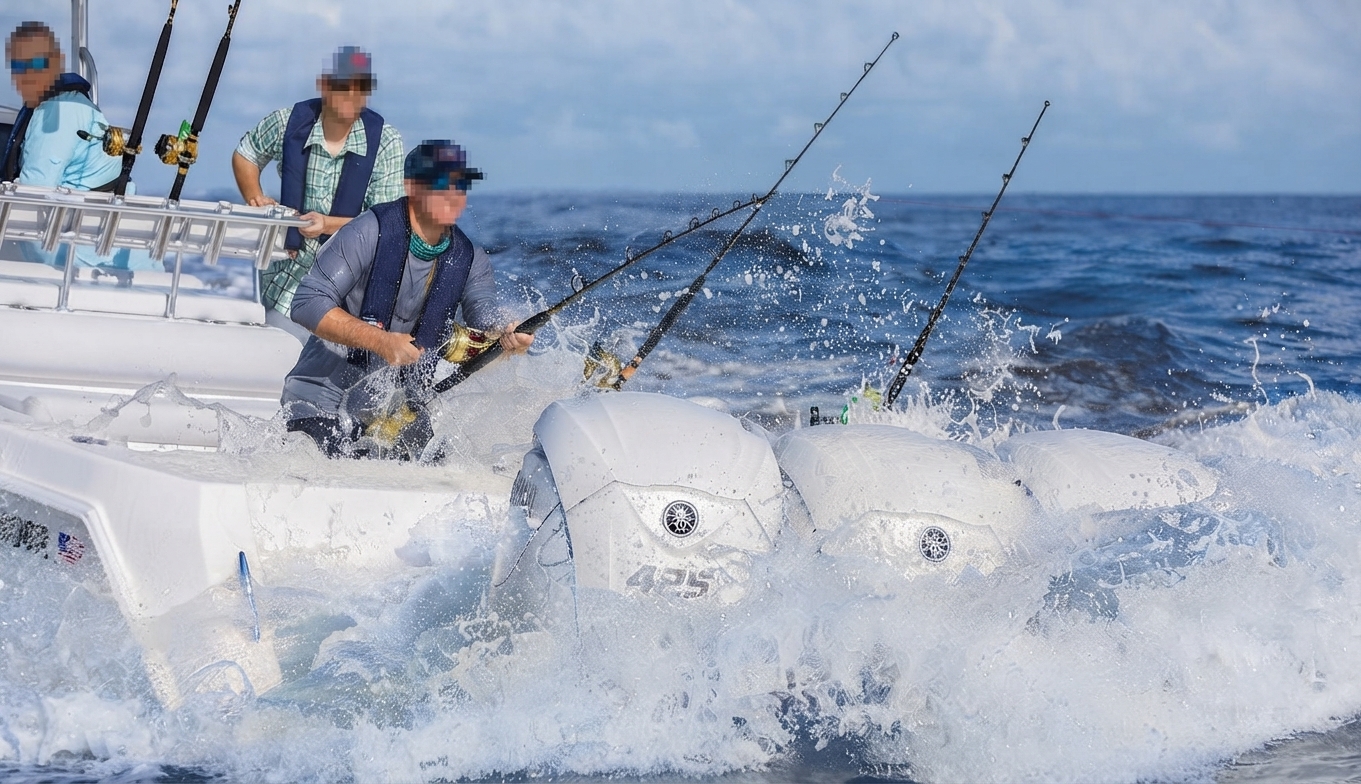

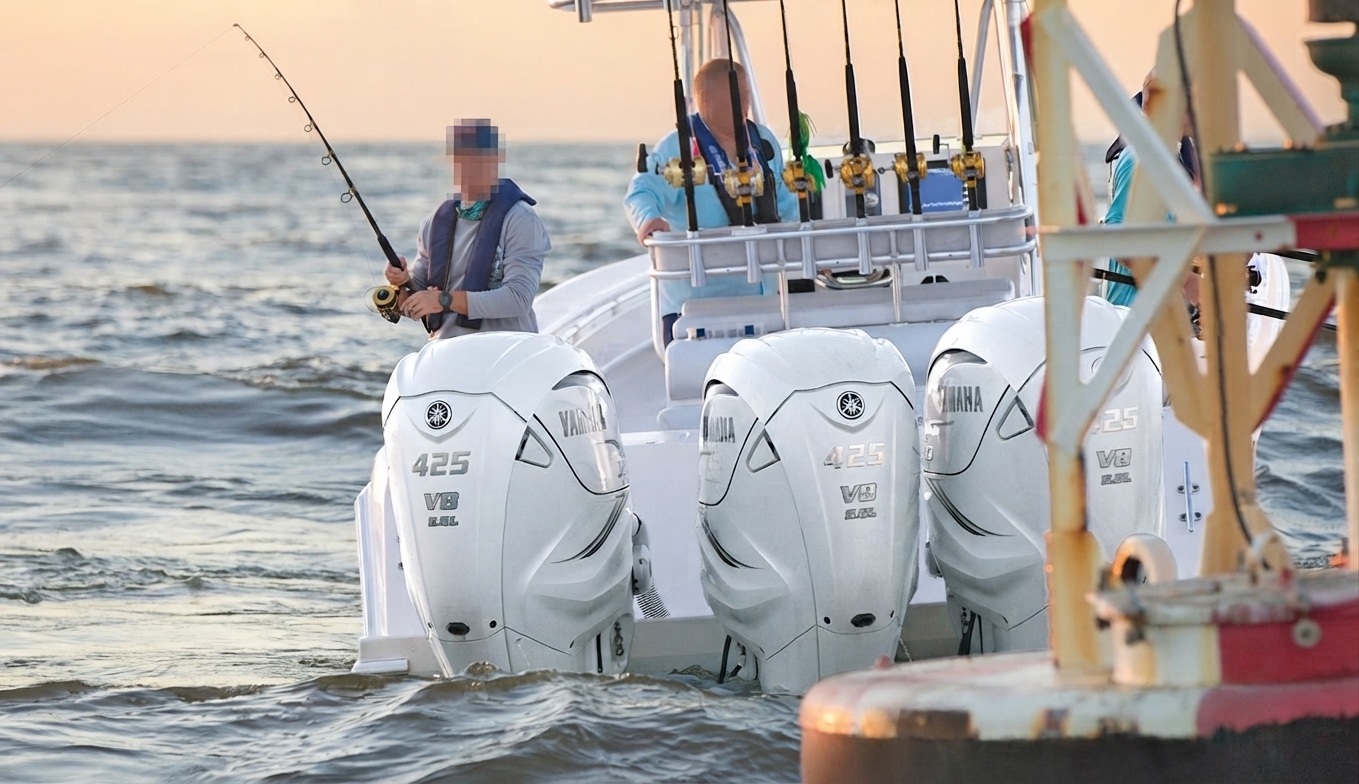

The Yamaha XTO Offshore 425 delivers unmatched power and efficiency for deep-sea conditions, developed through years of collaboration with top boat designers. Featuring an impressive 12.2:1 compression ratio for optimal fuel economy on standard 89-octane gas, it incorporates industry-first innovations like an integrated electric steering system, award-winning Phase Angle Control Charging, quad thermostats, and iridium spark plugs. Available in signature Yamaha gray or pearlescent white, and backed by a 5-year limited pleasure-use warranty.
Key Benefits
-
Deliver 425 horsepower engineered for extreme offshore environments while running efficiently on cost-effective 89-octane fuel.
-
Experience cutting-edge control and electrical management with integrated electric steering, phase angle control charging, and advanced quad thermostats.
