| Weight † | 218 kg (480 lbs) – 222 kg (489 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | Inline 4 |
| Displacement | 2.8L |
| Bore x Stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 175 hp at 5500 rpm |
| Alternator Output at W.O.T. | 50 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L/4.3L w/without filter |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 1.86:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ – 25″ |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 32° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |

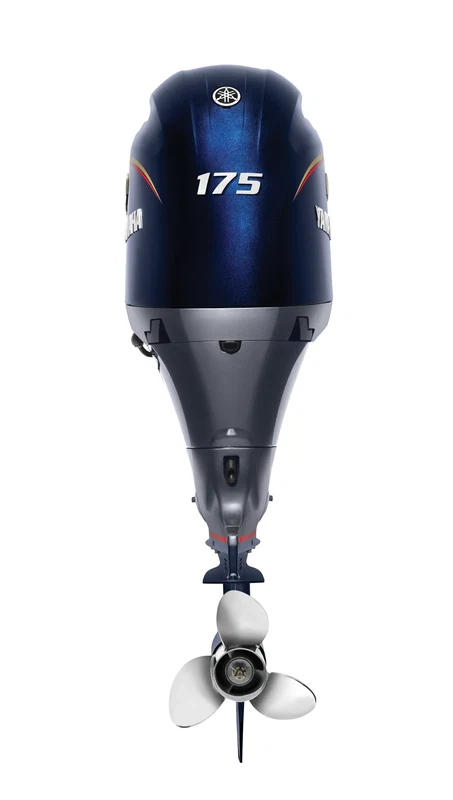

Yamaha In-Line Four V MAX SHO 175 Outboard Motor
$15,400.00
Lean and mean, the In-Line Four V MAX SHO 175 delivers exhilarating hole shot and class-leading top speed. It clocked in at 62 mph with a tournament load—up to five mph faster than its VF150 sibling. Built around a 2.8L high-output four-cylinder engine, it features a dry weight of 480 lbs, available shaft lengths of 20” and 25”, 50 amps of charging power, a new tilt stop lever, and optional Variable Trolling RPM via gauge.
Key Features
-
Exhilarating Speed: Delivers an impressive hole shot and class-leading top speed, reaching 62 mph with a tournament load (up to 5 mph faster than the VF150).
-
Engine & Weight: Powered by a 2.8L high-output four-cylinder engine with a dry weight of 480 lbs.
-
Shaft & Power: Offered in 20” and 25” shaft lengths with 50 amps of charging power.
-
Control & Convenience: Includes a new tilt stop lever and optional Variable Trolling RPM via gauge.
