| Weight † | 218 kg (480 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | Inline 4 |
| Displacement | 2.8L |
| Bore x Stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 150 hp at 5500 rpm |
| Alternator Output at W.O.T. | 50 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L/4.3L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ – 25″ |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 32° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |

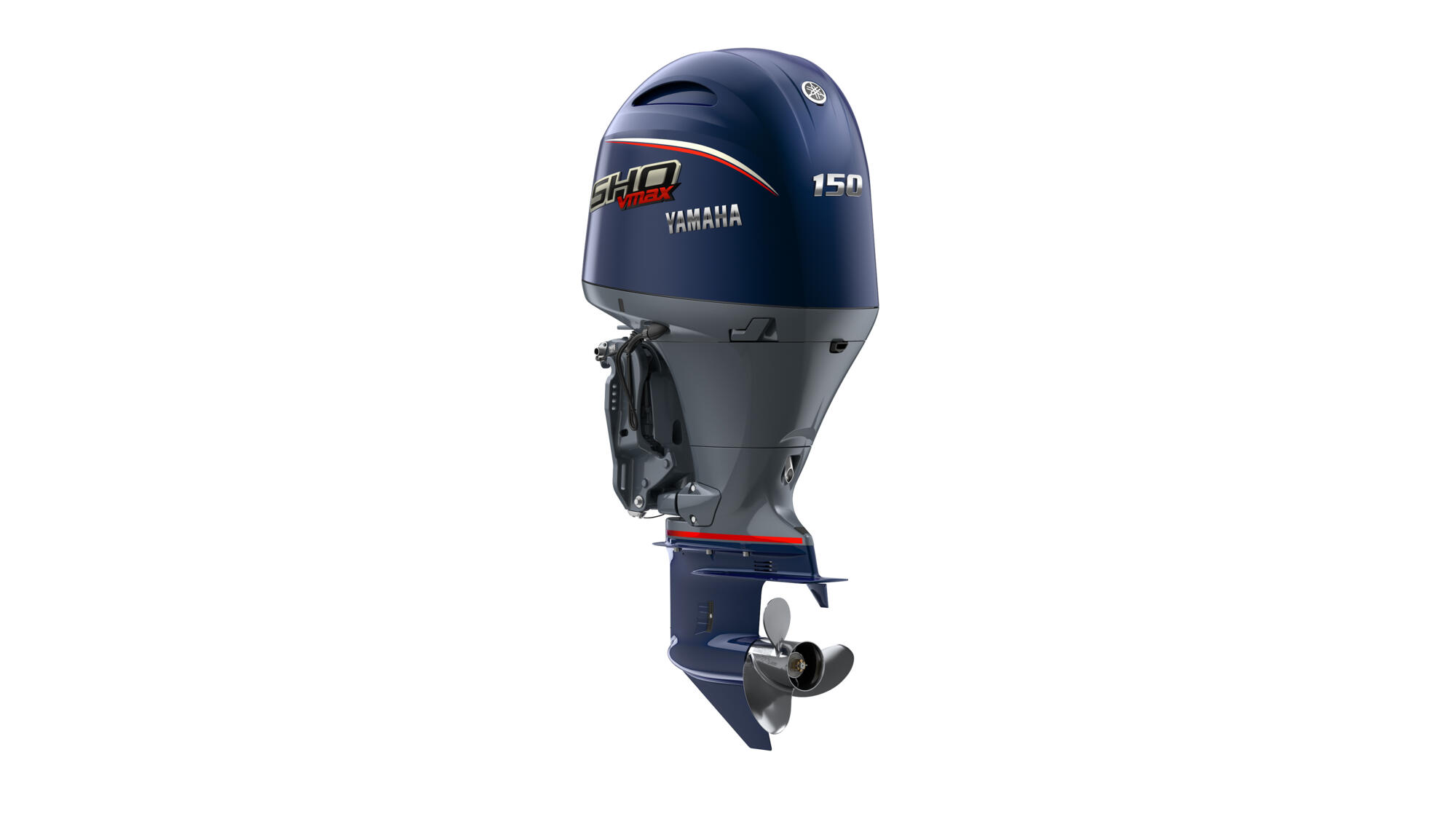

Yamaha In-Line Four V MAX SHO 150 Outboard Motor
$13,904.00
The IBEX Award-winning In-Line Four V MAX SHO 150 features an exhilarating top speed and a 7.7-second hole shot. Now that’s signature V MAX SHO performance. Built on a 2.8-liter high-output four-cylinder engine with a dry weight of 480 lbs, it provides 50 amps of charging power and is available in 20” and 25” shaft lengths. It also includes a new tilt stop lever and optional Variable Trolling RPM via gauge.
Key Features
-
Award-Winning Performance: Recognized with an IBEX Award for delivering an exhilarating top speed and a rapid 7.7-second hole shot.
-
Engine Architecture: Powered by a 2.8-liter high-output four-cylinder engine with a dry weight of 480 lbs.
-
Shaft & Electrical Output: Offered in 20” and 25” shaft lengths with 50 amps of charging power.
-
Convenience & Control: Features a new tilt stop lever and supports optional Variable Trolling RPM via gauge.
