| Weight †| 116kg (257 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4-M (See Owner’s Manual) |
| Engine Type | Inline 4 |
| Displacement | 1.0L |
| Bore x Stroke | 65mm x 75mm (2.56 x 2.95 in) |
| Prop Shaft Horsepower | 40hp @ 5500rpm |
| Alternator Output at W.O.T. | 17 Amp |
| Compression Ratio | 9.5:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Jet Nozzle |
| Intake | 8 |
| Ignition | TCI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 2.1L/1.9.L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | Direct Drive |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | Fits 25″ Transom |
| Degree of Tilt | 69° |
| Degree of Trim | -4 through 16° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3 Year Limited Pleasure Boat – 1 Year Limited Commercial |
Yamaha F90 Jet Drive Outboard Motor
$10,120.00
Yamaha F40 Jet Drive Outboard Motor
$6,600.00
Yamaha F60 Jet Drive Outboard Motor
$8,096.00

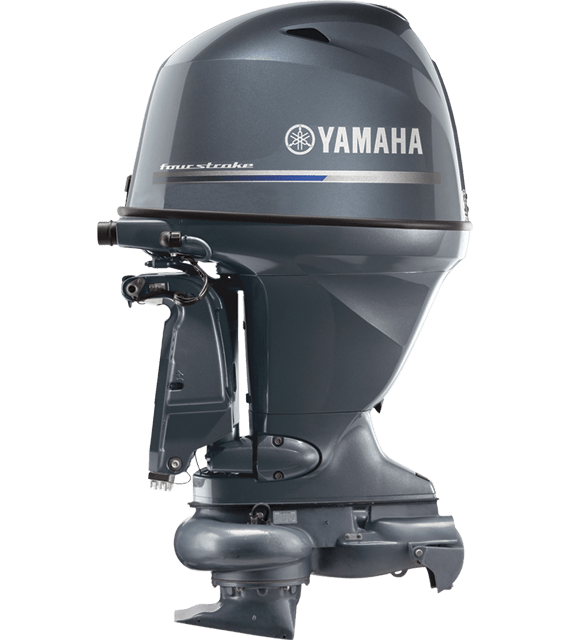

Our 1-liter F60 Jet Drive outboard produces 40 hp at the pump. Its compact, lightweight SOHC four-cylinder, in-line design features a single throttle valve and long-track induction system. This creates a light, compact, powerful outboard and improves throttle response for shallows and shoals. The unit weighs 257 pounds including the jet pump assembly, fits 25-inch transom boats, includes a solid 17-amp alternator, and features Power Trim & Tilt.
Key Features
-
Pump Performance: Produces 40 hp at the pump with improved throttle response designed specifically for shallows and shoals.
-
Engine Architecture: Utilizes a compact, lightweight 1-liter SOHC four-cylinder in-line design featuring a single throttle valve and long-track induction system.
-
Weight & Transom Fit: Weighs 257 pounds including the jet pump assembly and fits 25-inch transom boats.
-
Electrical & Trim: Equipped with a solid 17-amp alternator and integrated Power Trim & Tilt.
